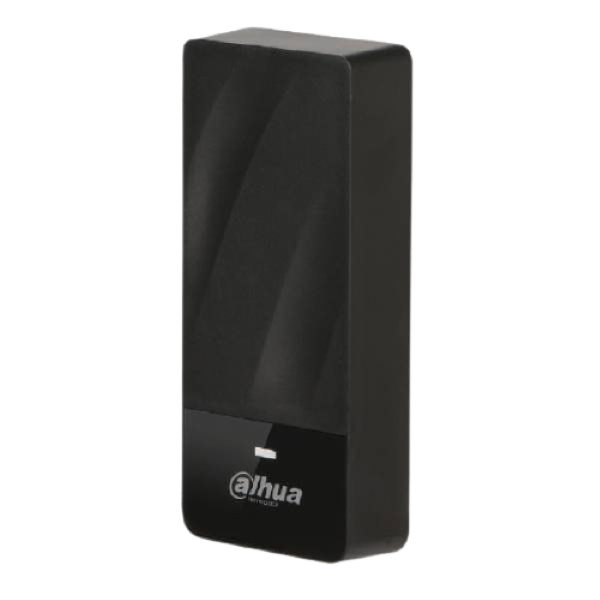

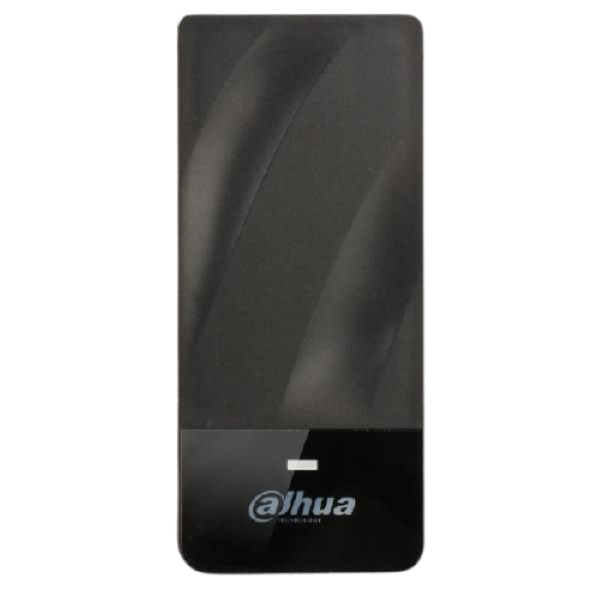

Dahua Slim Waterproof RFID Reader
Code : DA-DH-CA002
- Wiegand 34/26 (default 34); RS-485 protocol
- 13.56MHz (Mifare)
- 125KHz(EM-ID)
- Waterproof design
- Red, blue and green indicator LEDs; built-in buzzer
- Surface mounted installation
- IP67 Outdoor use
- 9-15VDC/100mA
- Dimension: 96 x 43 x 17mm
