Intercom System

An intercom system is a two-way communication device (also known as “door phone”) used to manage calls made at the entrance to a building.
Audio intercom systems send and transmit only voice. Whereas, video intercom systems used for audiovisual communication (inside/outside) and enables the person indoors to identify the visitor and/or open the door to allow access to the person calling.

Audio Intercom

Basic door phone features
Budgeted price

Video Intercom

Outdoor station with camera
Touch screen indoor monitor
Support mobile app communication

Audio Intercom

<img width="300" height="300" src="https://www.stdnsecurity.com/wp-content/uploads/2021/09/DA-KC-AI003-4-300x300.png" class="attachment-woocommerce_thumbnail size-woocommerce_thumbnail" alt="" srcset="https://www.stdnsecurity.com/wp-content/uploads/2021/09/DA-KC-AI003-4-300x300.png 300w, https://www.stdnsecurity.com/wp-content/uploads/2021/09/DA-KC-AI003-4-150x150.png 150w, https://www.stdnsecurity.com/wp-content/uploads/2021/09/DA-KC-AI003-4-100x100.png 100w, https://www.stdnsecurity.com/wp-content/uploads/2021/09/DA-KC-AI003-4.png 500w" sizes="(max-width: 300px) 100vw, 300px" />

Audio Intercom

Kocom Door Phone Unit for KDP-601 or KDP-602

Code : DA-KC-AI003

Power: 6VDC ~ 9VDC (powered from Interphone unit)
Only used for 601/602
NOT weatherproof
2-wire connection to Indoor Station.

Add to Enquiry List

<img width="300" height="300" src="https://www.stdnsecurity.com/wp-content/uploads/2021/09/DA-KC-AI003-4-300x300.png" class="attachment-woocommerce_thumbnail size-woocommerce_thumbnail" alt="" srcset="https://www.stdnsecurity.com/wp-content/uploads/2021/09/DA-KC-AI003-4-300x300.png 300w, https://www.stdnsecurity.com/wp-content/uploads/2021/09/DA-KC-AI003-4-150x150.png 150w, https://www.stdnsecurity.com/wp-content/uploads/2021/09/DA-KC-AI003-4-100x100.png 100w, https://www.stdnsecurity.com/wp-content/uploads/2021/09/DA-KC-AI003-4.png 500w" sizes="(max-width: 300px) 100vw, 300px" />

Audio Intercom

Kocom Door Phone Unit for KIP-611PG

Code : DA-KC-AI004

24VDC 1.2A powered (powered from Interphone unit)
Only used for 605 / 611PG
NOT weatherproof.

Add to Enquiry List

Audio Intercom

Kocom 5-way Interphone

Code : DA-KC-AI005

Comes with paging function
Optional: DS-4M door phone station
24VDC 1.2A powered (suggest to bundle with PSA014 Power Adaptor)

Add to Enquiry List

Audio Intercom

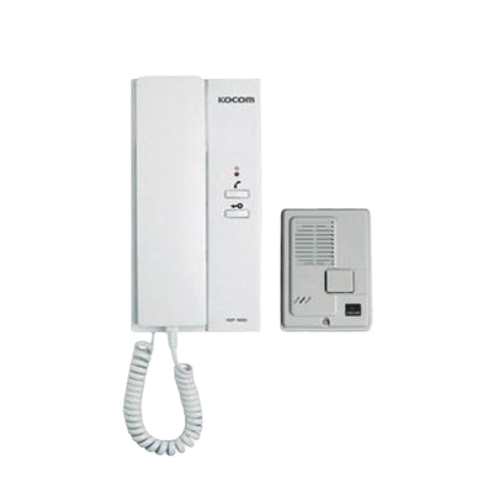

Kocom (1 to 1) Door Phone System (Intercom)

Code : DA-KC-AI001

230V AC Powered
Effective Wiring Distance: 300m using 0.65mm Copper wire
Dimensions: 92(W) x 210(H) x 57(D)

Add to Enquiry List

Audio Intercom

Kocom (1 to 2) Door Phone System (Intercom)

Code : DA-KC-AI002

230V AC Powered
Effective Wiring Distance: 300m using 0.65mm Copper wire
Dimensions: 92(W) x 210(H) x 57(D)

Add to Enquiry List

Video Intercom

Video Intercom

Dahua 2-wire Switch

Code : DA-DH-VI021

Supports 10-level cascade through the 2-wire port
Supports connecting to 20 indoor monitors and 2 door stations
Supports connecting through RJ45 port
Powered by 48VDC 1A-3A (power supply not included)

Add to Enquiry List

Video Intercom

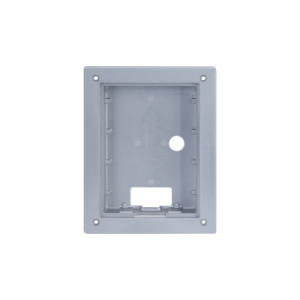

Flush Mounted Box

Code : DA-DH-VI012

Flush Mount Box for VTO2202F
Material: ADC12
Dimensions(Front) : 128.9mm x 162.9mm x 34.5mm(5.08" x 6.42" x 1.36")
Dimensions(rear) : 123.0mm x 157.0mm x 35.0mm (4.84" x 6.18" x 1.38")
Wall Opening Dimensions: >113.0mm x 149.0mm x 35.0mm (4.45" x 5.87" x 1.38") , <123.0mm x 157.0mm x 35.0mm (4.84" x 6.18" x 1.38")

Add to Enquiry List

Video Intercom

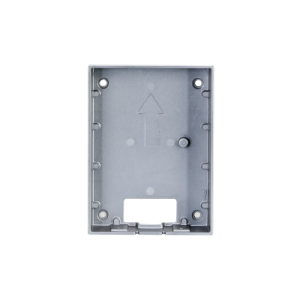

Surface mounted Box

Code : DA-DH-VI013

Surface Mount Box for VTO2202F
Material:AL5052 t=2.0mm
Dimensions: 129.0mm x 95.0mm x 28.5mm (5.08" x 3.74" x 1.12")

Add to Enquiry List

Video Intercom

Code : DA-DH-VI014

Surface-mounted rain cover for VTO2202F
Material : Aluminum alloy

Add to Enquiry List

Video Intercom

Dahua Digital Face Recognition Outdoor Station

Code : DA-DH-VI015

Suitable used at apartment lobby station
SIP2.0
2MP CMOS Camera
Anodized aluminum alloy middle frame
8" IPS Touch Screen; resolution: 800(H) x 1280(V)
Face, fingerprint, password, and Mifare card reader
Face verification accuracy>99%; face comparison time<=0.2s per person; false recognition rate<0.1%
TCP/IP 10/100Mbps, RS-485, Wiegand, Alarm 2/2
IK07; IP66 (Silica gel is needed)
Dimensions: 145mm?389mm?43mm
DC12V/2A
Surface mount and flush mount

Add to Enquiry List

Video Intercom

Dahua Apartment Outdoor Lobby Station with 2.3″ OLED Screen

Code : DA-DH-VI016

SIP2.0
Small size apartment door station
2MP CMOS camera
Mechanical button with Braille
Aluminium alloy plate, IP55, IK08
Door release via password and Mifare card
TCP/IP 10/100Mbps, Wiegand in, Alarm 1/1, Door Control interface
IK08, IP55.
DC12V/2A or PoE (802.3af)

Add to Enquiry List

Video Intercom

Dahua Apartment Outdoor Lobby Station with 4.3″ IPS Display

Code : DA-DH-VI017

SIP2.0
4.3 inch IPS display; screen resolution 800x480
2MP CMOS; true WDR
Touch button
IP65 rating
Operating temperature: -30°C to +60°C
Auto light illumination reduces light pollution
Multiple unlock modes: Password unlock, Mifare IC card unlock, and remote unlock
Support 20000 users and 10000 cards
TCP/IP 10/100Mbps, Wiegand 1/1, Alarm 2/2, Door Control interface
DC12V2A

Add to Enquiry List

Video Intercom

Dahua Video Intercom Master Station

Code : DA-DH-VI018

SIP2.0
10" Capacitive Touch Screen 1024x600
Desktop design, easy to operate, no need to install, adjustable bracket angle range 0??45?.
IPC Surveillance 4*720P channels
Supports four split screen, multi-channel monitoring at the same time
Supports two audio output modes: handsfree and handset.
SD card slot (max 64GB), 2 x USB, GE, DC12V 2A
Supports HDMI output; resolution 1024x600

Add to Enquiry List

Video Intercom

Dahua Compact SIP Server

Code : DA-DH-VI019

SIP1.0
Standard SIP protocol
Management of SIP clients such as indoor monitor and SIP telephone
System Capacity: 250 devices
Surface mounted
Embedded Linux System
Standard SIP Protocol

Add to Enquiry List

Video Intercom

Dahua Access Control Extension Module

Code : DA-DH-VI020

Max 5000 card storage, Able to Add & Delete Cards
Lock NO/NC, Button, Door sensor
Connects to VTO using RS485; enable connection of second lock device

Add to Enquiry List

Video Intercom

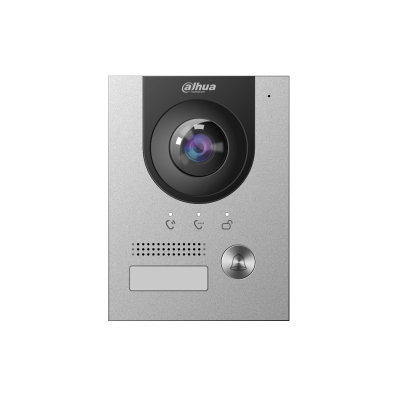

Dahua IP Villa Door Station With Fisheye Camera

Code : DA-DH-VI011

SIP2.0
2MP HD CMOS Colourful 160° Fisheye Camera
Single mechanical button
Night vision & voice indicator
Remote intercom with mobile APP
160° angle of view
DC 12V; Power supply by 2-wire; PoE
Aluminum alloy plate; IP55 & IK07
Surface / flush mounted

Add to Enquiry List

Video Intercom

Dahua WiFi Indoor Monitor

Code : DA-DH-VI005

7" TFT Capacitive touch screen, 1024x600 (SIP1.0/2.0)
IPC surveillance
6ch wired alarm integration, 6ch wireless alarm integration (433MHZ)
Micro SD card optional, max 32GB
Record & Snapshot (SD card needed)
Alarm 6/1, RS485, TCP/IP 100Mbps
12VDC; PoE (802.3af)
IEEE802.11b/g/n
Built-in camera
Dimensions: 215mm x 140mm x 21.0mm
Surface Mounted

Add to Enquiry List

Video Intercom

Dahua 2-wire IP Indoor Monitor

Code : DA-DH-VI006

7" TFT capacitive touch screen, 1024x600 (SIP2.0)
Micro SD supported (Max 64GB)
Audio IN, Alarm 6/1, RS485, TCP/IP 100Mbps
Supports standard PoE
Supports H.265 and H.264 video coding
Supports 2-wire digital communication
Power supply from 2-wire switch (max 100m distance)
Supports daisy chain topology
2.5D screen glass
Dimensions: 189mm?130mm?26.9mm
Surface Mounted

Add to Enquiry List

Video Intercom

Dahua IP Indoor Monitor – Digital VTH 10″ touch screen (SIP 2.0)

Code : DA-DH-VI007

10" TFT Capacitive touch screen, 1024 x 600
IPC surveillance
Alarm integration
Embedded 8GB SD card for record & snapshot
12VDC 1A
PoE (802.3af)
Alarm 6/1
TCP/IP 100Mbps
Dimensions: 260mm?170mm?28mm
Surface Mounted

Add to Enquiry List

Video Intercom

Desktop Mounted Bracket for VTH Indoor Monitors

Code : DA-DH-VI008

Size: 190mm*100mm*54mm
Dip angle: 45 degree

Add to Enquiry List

Video Intercom

Dahua IP Villa Door Station

Code : DA-DH-VI009

Surface mounted
SIP2.0
1MP HD CMOS WDR Camera
Single mechanical button
IC card reader (10000 capacity)
Night vision & Voice indication
Card/app remote/indoor monitor unlock
Supports two-way voice call; support calls between door stations and app
Plastic Panel, IP65 (silicone sealant is needed)
DC 12V; PoE (802.3af)
Operating temperature: 30°C - 60°C
Tamper Alarm

Add to Enquiry List

Video Intercom

Dahua IP 2-button Villa Outdoor Station

Code : DA-DH-VI010

Surface mounted
VT/SIP1.0/2.0
1MP HD CMOS Camera
2 mechanical buttons
ICR Night vision & voice indication
Remote intercom with mobile APP
Aluminum panel, IP65,IK08
Video & audio messaging
DC 12V; PoE (802.3af)

Add to Enquiry List

Video Intercom

Dahua Analog Video Intercom Package

Code : DA-DH-VI001

Indoor Monitor - 7" TFT Display (800x480)
Door Station (1.3MP CMOS, DWDR, Auto IR, Rain Cover, IP66)
Powered by 12V2A through indoor monitor (adaptor included)
Easy installation using only 4-wires
Video intercom function: Unlock, voice call, video call, volume adjustment
Quantity of video intercom: 2 door stations + 3 indoor monitors
Multiple bell sounds

Add to Enquiry List

Video Intercom

Dahua Analog Indoor Monitor

Code : DA-DH-VI002

7" TFT screen
Video intercom function: Unlock, voice call, video call and volume adjustment
Mechanical button
Multiple bell sounds
DC12V 2A, Surface mount.

Add to Enquiry List

<img width="300" height="300" src="https://www.stdnsecurity.com/wp-content/uploads/2021/09/vid-intercom-3-i-300x300.png" class="attachment-woocommerce_thumbnail size-woocommerce_thumbnail" alt="" srcset="https://www.stdnsecurity.com/wp-content/uploads/2021/09/vid-intercom-3-i-300x300.png 300w, https://www.stdnsecurity.com/wp-content/uploads/2021/09/vid-intercom-3-i-150x150.png 150w, https://www.stdnsecurity.com/wp-content/uploads/2021/09/vid-intercom-3-i-100x100.png 100w, https://www.stdnsecurity.com/wp-content/uploads/2021/09/vid-intercom-3-i.png 400w" sizes="(max-width: 300px) 100vw, 300px" />

Video Intercom

Dahua IP Indoor Monitor

Code : DA-DH-VI003

7" TFT Capacitive touch screen, 1024x600 (SIP2.0)
IPC surveillance
Alarm integration
Alarm 6/1, TCP/IP 100Mbps
Surface / Desktop mounted
Power : DC 12V / supply by VTNS1060A; <7W
High performance & Cost-effective
Dimensions: 222mm?120mm?22.0mm

<img class="alignnone wp-image-2843 size-full" src="http://www.stdnsecurity.com/wp-content/uploads/2021/10/DA-DH-VI003-4.png" alt="" width="670" height="210" />

Add to Enquiry List

<img width="300" height="300" src="https://www.stdnsecurity.com/wp-content/uploads/2021/09/vid-intercom-3-i-300x300.png" class="attachment-woocommerce_thumbnail size-woocommerce_thumbnail" alt="" srcset="https://www.stdnsecurity.com/wp-content/uploads/2021/09/vid-intercom-3-i-300x300.png 300w, https://www.stdnsecurity.com/wp-content/uploads/2021/09/vid-intercom-3-i-150x150.png 150w, https://www.stdnsecurity.com/wp-content/uploads/2021/09/vid-intercom-3-i-100x100.png 100w, https://www.stdnsecurity.com/wp-content/uploads/2021/09/vid-intercom-3-i.png 400w" sizes="(max-width: 300px) 100vw, 300px" />

Video Intercom

Dahua IP Indoor Monitor- Digital VTH (4.3SIP)

Code : DA-DH-VI004

7" TFT Capacitive touch screen, 1024 x 600
IPC surveillance
Alarm integration
Alarm 6/1, TCP/IP 100Mbps
Surface / Desktop mounted
PoE powered
Comes with 8GB memory, supports Micro SD up to 32GB
High performance & Cost-effective
Dimensions: 222mm?120mm?22.0mm

<img class="alignnone wp-image-2843 size-full" src="http://www.stdnsecurity.com/wp-content/uploads/2021/10/DA-DH-VI003-4.png" alt="" width="670" height="210" />

Add to Enquiry List
