Door Access Controller
Access control controller is built to unlock a door. It is differentiate in depth of features, i.e. type of access control panel, door contact relays, power supply rating, door contact sensor input, alarm input etc.

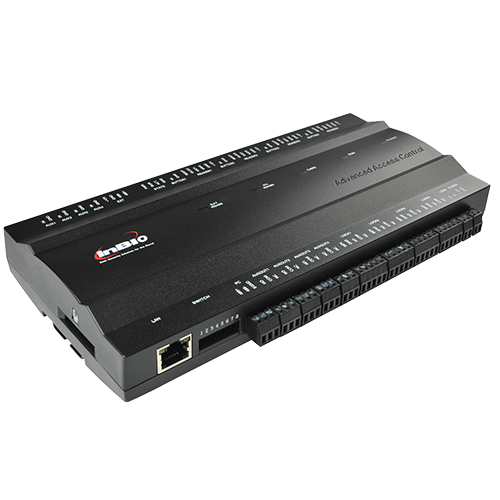

ZKTECO
Code : DA-ZK-DAC001
- Supports 30000 Cards, 100000 Log Events
- TCP/IP & RS-485 Communication
- 12VDC 300mA
- Available models for: 1-Door IN+OUT; 2-Doors IN+OUT; 4-Doors IN Only
- Software supported: ZKBioAccess (Supports Max 25 Doors)
- All panels come with ZKPSM030B Power Supply in metal casing
Code : DA-ZK-DAC002
- Supports 3000 Fingerprint Templates, 30000 Cards, 100000 Log Events
- TCP/IP & RS-485 Communication
- 12VDC 300mA
- Available models for: 1-Door IN+OUT; 2-Doors IN+OUT; 4-Doors IN Only
- Software supported: ZKBioAccess & ZKBioSecurity V5000 (Require License)
- Over-current protection, over-voltage protection
- Supports different Wiegand formats?
- Can be integrated with other security systems - CCTV, Intrusion Detection, Fire Alarm Release, and elevator Control

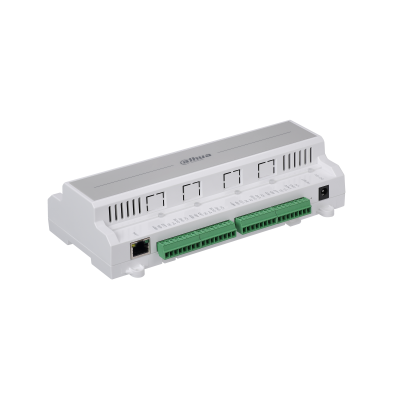

DAHUA
Code : DA-DH-DAC001
- Support 3000 Fingerprints, 100000 cards & 150000 records
- Support card, password, fingerprint and combination
- TCP/IP interface to PC
- Wiegand or RS-485 interface to readers (2/4 door)
- Door time out alarm, intrusion alarm, duress alarm and tamper alarm
- Anti-passback, multi-door interlock, multi-card open.
- Free software Smart PSS-AC
- Support 128 efficient time and holiday schedulesWatch dog function ensure device free from halting
- Surface mounted or DIN Rail installation
- Available models for: 2-Doors One-way controller; 2-Doors Two-way controller; 4-Doors One-way controller
