Pedestrian Gate

Pedestrian gates (turnstile, flap/ swing/ sliding barrier, automatic door etc) essentially allow residents / employee to enter/exit a location through a narrow entry/exit way integrated with user access rights in a access control system.

Tripod Turnstile

Dual Level Anti-Tailgating Security
Integrated with card access / fingerprint access control system
Semi Auto Arm Operation

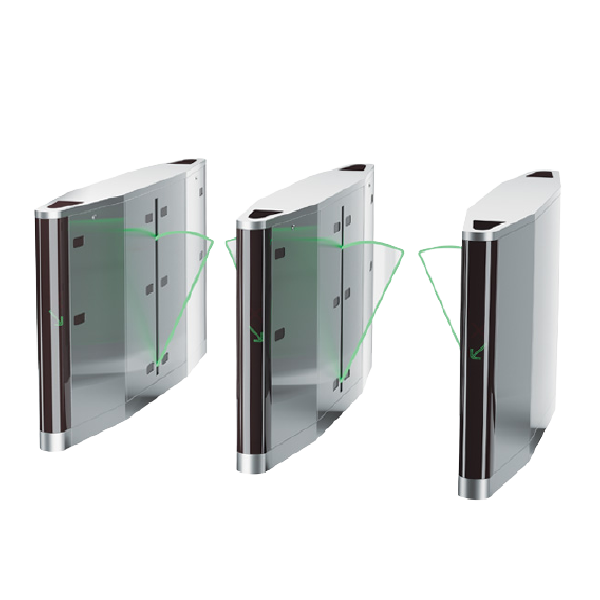

Flap Barrier

Slim stylish design; elegant look
Limited space for other device
Premium shiny hairline
Green and red light on acrylic wing

Swing Barrier

Minimum maintenance
Alarm notification
Double safety
Multiple access memory
Emergency evacuation

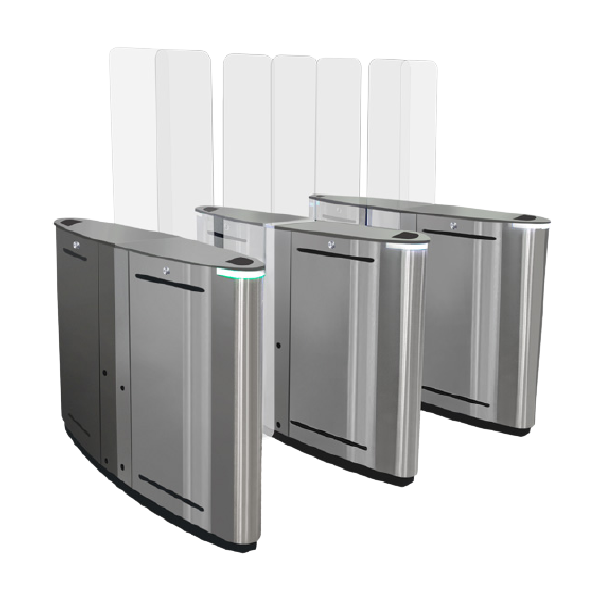

Sliding Barrier

High door panel
Fully automated arm rotation
Support card access system
Drop arm will rise by itself

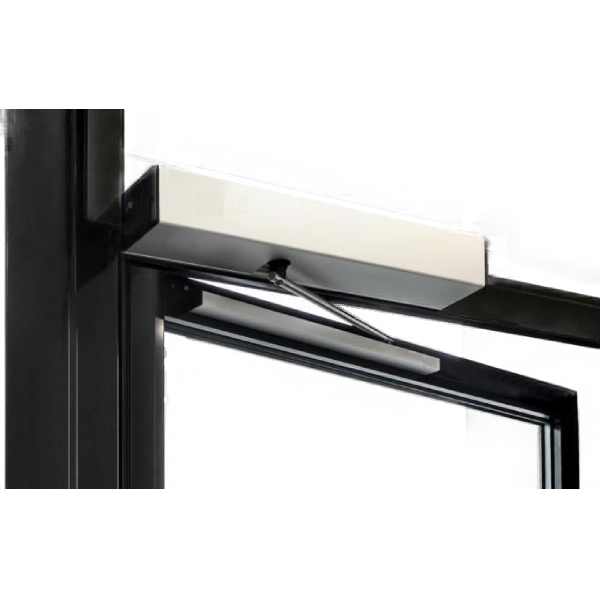

Automatic Door

Automatic door closure
Convenient usage, hassle-free
Catch-return safety system

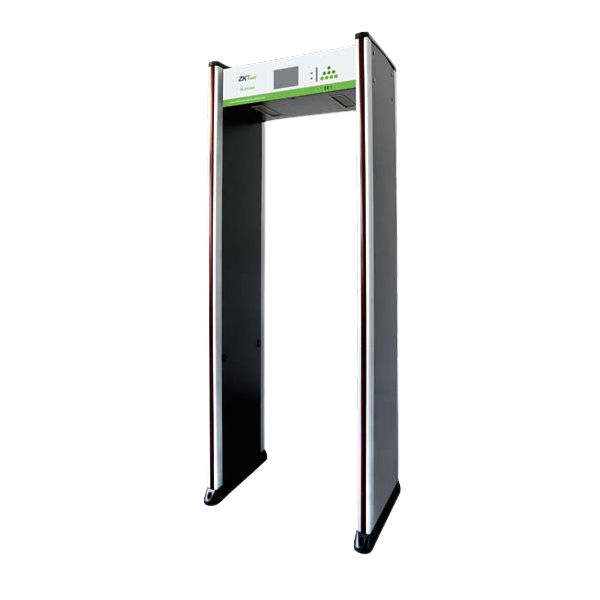

Metal Detector

18 mutual metal detecting zones
Built-in LED indicator, Alarm & Buzzer
Can Perform Head Count
Harmless to body

Tripod Turnstile

Tripod Turnstile

MAG Economical Tripod Turnstile for Small Space

Code : GS-PED-TUN001

Power Supply Input: AC230 ± 10V
Power Voltage: 24 V DC
Power consumption: Idle 16W; Operating 36W
Response Time: 0.3 sec
Pass Speed: 25 person per minute
Housing thickness: 1mm
Waist height (indoor)
Mini size for small space
Semi-auto arm operation
Affordable medium traffic
Dual-level anti tailgating security

Add to Enquiry List

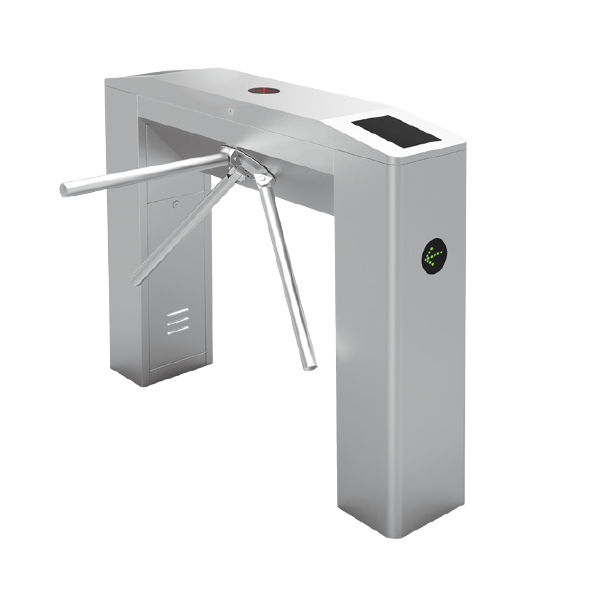

Tripod Turnstile

MAG Economical Tripod Turnstile for Robust Usage

Code : GS-PED-TUN002

Power supply input: AC230 ± 10V
Power voltage: 24 V DC
Power consumption: Idle 16W; Operating 38W
Response Time: 0.3 sec
Pass Speed: 20-25 person per minute
Housing thickness: 1mm
Waist height (indoor)
Standard size for robust usage
Semi-auto arm operation
Affordable medium-high traffic
Dual-level anti tailgating security

Add to Enquiry List

Tripod Turnstile

MAG Motorized Tripod Turnstile

Code : GS-PED-TUN003

Power supply input: 220V ± 10%AC , 50/60 Hz
Power consumption: Idle 16W; Operating DC24V
Rotating speed of the motor: 800 round/minute
Pass Speed: 20-30 person per minute
Waist height (indoor)
Standard size for robust usage
Fully automated arm rotation
Least maintenance high traffic
Best anti tailgating security

Add to Enquiry List

Tripod Turnstile

MAG Dual Lane Full Height Turnstile

Code : GS-PED-TUN004

Power Supply Input: AC 100V-240V, 50/60Hz
Power Voltage: DC 24V / 30watt
Open Signal: Passive signals (relay signals, dry contact signals)
Passage Width 650mm
Response Time 0.2s
Optimal Pass Speed: 15-20 person per minute
Arm Rotation Angle: 90/120 degree
Working Environment: Indoor and outdoor with shading (-25C° ~ +70°C)
IP 52 rating
Operations time: ≥5 million times
Housing / Arm Materials: 304 Stainless Steel (brushed finish)
Housing dimension: 2400mm (W) x 1580mm (L) x 2300mm (H)
Full height (outdoor); Combine 2 lanes to save space
Semi-auto arm rotation
Best security medium traffic
No crawling under or climbing over

Add to Enquiry List

Tripod Turnstile

MAG Single Lane Full Height Turnstile

Code : GS-PED-TUN005

Power Supply Input: AC 220V 50HZ
Power Voltage: DC 24V / 50W
Open Signal: Passive signals (relay signals, dry contact signals)
Passage Width 650mm
Response Time 0.2s
Optimal Pass Speed 25-30 person per minute
Housing / Arm 304 Stainless Steel
Arm Rotation Angle: 90/120 degree
Working Environment: Indoor and outdoor (-20C° ~ +70°C)
IP 52 rating
Operations time: ≥5 million times
Full height (outdoor)
Standard size extra robust design
Semi-auto arm rotation
Best security medium traffic
No crawling under or climbing over

Add to Enquiry List

Swing Barrier

Swing Barrier

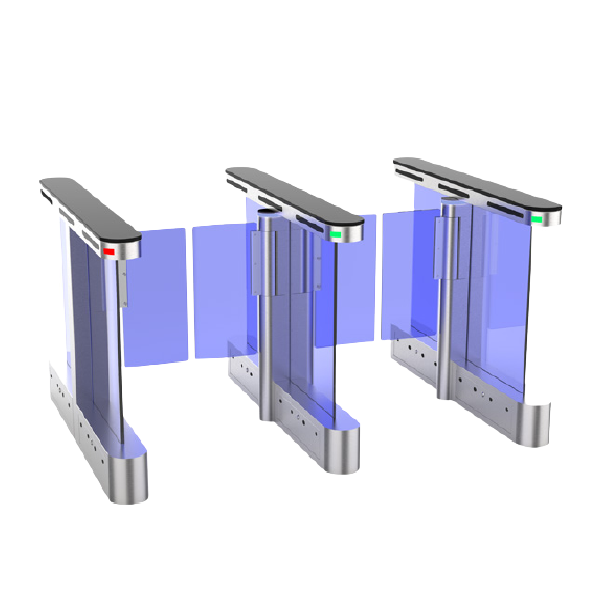

MAG Swing Barrier

Code : GS-PED-SWI001

Body material: acrylic glass, stainless steel
Gate door material: 12mm acrylic
Door width (single panel): 26.5cm standard lane; 45cm handicapped lane
Door opening / closing speed: programmable 0.4-1.5 sec
Optimal flow rate: 20-25 people per minute
Power supply: AC220/110V  10%, 50/60Hz
Motor: DC brushless motor, 140W/24V
Input connection: dry contact pulse > 500ms
Working environment: indoor only (-15 – 60 °C, RH 90%)
Passage width 580mm
Cabinet dimension: 1400(L) x 1020(W) x 980(H) mm
IP52 rating
Power rating:10W (standby) / 40W (operation)
Minimum maintenance; Alarm notification; Multiple access memory; Emergency evacuation

Add to Enquiry List

Swing Barrier

MAG Tubular Swing Barrier

Code : GS-PED-SWI002

Cabinet dimension: 168mm(diameter) x 1050(H)
Default gate length: 450mm
Cabinet material: 304 stainless steel
Power supply: AC220  10%V / 50  10%Hz
Motor voltage DC 24V (brushless motor)
Access device input voltage: dry contact
Optimal flow rate: 20-25 people per minute
Gate swing angle: 90° per side
Initialization time: 14 sec
IP 52 rating
Power rating 30W
Compact mini size; Fully auto brushless motorized; Support card access system

Add to Enquiry List

Swing Barrier

MAG Stainless Steel Railing

Code : GS-PED-SWI003

Stainless steel railing add on for Tubular Swing Barrier

Add to Enquiry List
