Vehicle Gate

Vehicle gates consist of an entrance gate which can be opened/closed via electric powered mechanism. The most popular autogate for residential properties are swing and sliding autogates. The user can control the opening & closing by using push button while at home or remote control while leaving/coming back to home. Whereas traffic barrier gate is usually integrated with access control system to manage vehicle access at a control point.

Barrier Gate

  • Lower Maintenance with BluSpeed Motor
  • Lesser Break Down with Dual Spring (DSP) Mechanism
  • 2-Times Safer with Dual Detection Safety (DDS) Sensor
Learn More

Long Range Reader

  • Effective long range reading & solar film penetration
  • Ignore interference with TnG RFID
  • Anti clone is available
Learn More

Sliding Autogate

  • Faster with Dual Speed Cushioning
  • Stronger & Less Maintenance
  • Durable Metal Pion Gear
Learn More

Swing Autogate

  • Self Lock at Every Angle
  • Extra Quiet & Robust Mechanism
  • Premium Finishing & Stylish
Learn More

Barrier Gate

Add to wishlist

Barrier Gate

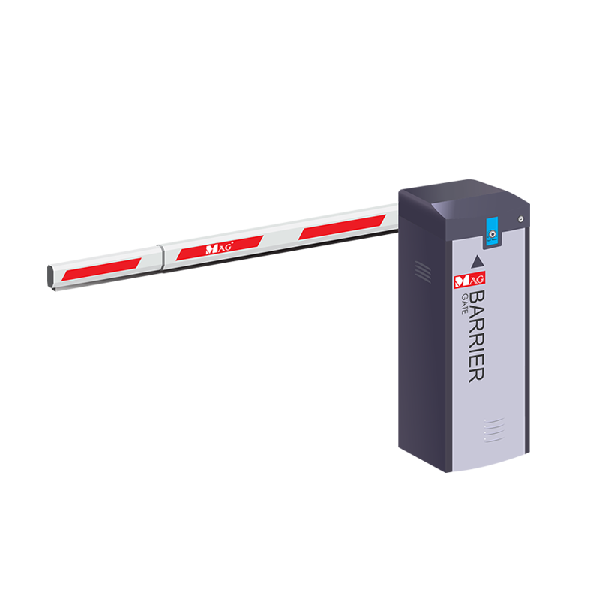

MAG Telescopic Arm Barrier Gate for High Traffic

Code : GS-VHC-BG001

  • Fastest straight arm
  • Support arm swing out
  • Arm length : 4 meters
  • Arm speed : 1.8 second
  • Telescopic arm optional foam lining

Add to Enquiry List
Add to wishlist

Barrier Gate

MAG Telescopic Arm Barrier Gate for Medium Traffic

Code : GS-VHC-BG002

  • Most affordable straight arm
  • Support arm swing out
  • Arm length : 4 meters
  • Arm speed : 3 second
  • Telescopic arm optional foam lining

Add to Enquiry List
Add to wishlist

Barrier Gate

MAG Telescopic Arm Barrier Gate for Big Vehicle

Code : GS-VHC-BG003

  • Longest straight arm
  • No arm swing out
  • Arm length : 6 meters
  • Arm speed : 6 second
  • Telescopic arm optional foam lining

Add to Enquiry List
Add to wishlist

Barrier Gate

MAG Folding Arm Barrier Gate for Basement Parking (Arm Speed 1.8 sec)

Code : GS-VHC-BG004

  • Fastest folding arm
  • No arm swing out
  • Arm length : 4 meters
  • Arm speed : 1.8 second
  • Non-telescopic optional foam lining

Add to Enquiry List
Add to wishlist

Barrier Gate

MAG Folding Arm Barrier Gate for Basement Parking (Arm Speed 3 sec)

Code : GS-VHC-BG005

  • Most affordable folding arm
  • No arm swing out
  • Arm length : 4 meters
  • Arm speed : 3 second
  • Non-telescopic optional foam lining

Add to Enquiry List
Add to wishlist

Barrier Gate

MAG Fence Arm Barrier Gate to Clock Car & People

Code : GS-VHC-BG006

  • Highest security fence arm
  • No arm swing out
  • Arm length : 4.5 meters
  • Arm speed : 6 second
  • Non-telescopic, no foam lining
  • Model available for Right / Left arm opening

Add to Enquiry List

Long Range Reader

Add to wishlist

Long Range Reader

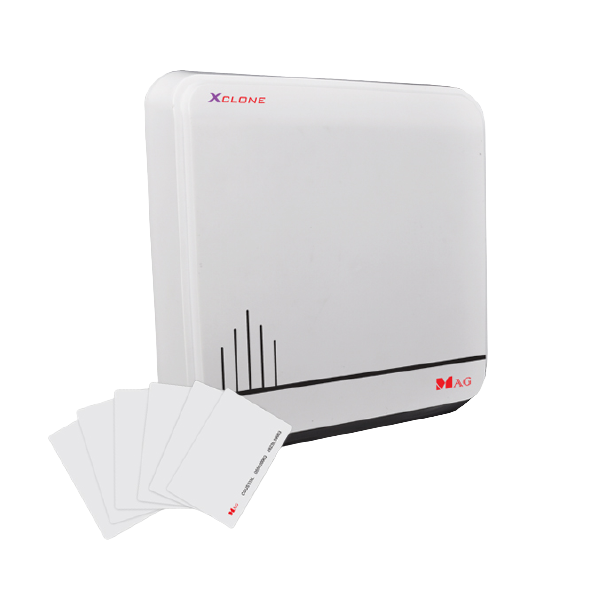

MAG Anti Clone UHF Long Range Reader

Code : GS-VHC-LRR001

  • UHF reader
  • Data output wiegand 26 / 34
  • Reading range: 2 to 6 meter depend heavily on solar film at car (outdoor)
  • IP66, waterproof and weather proof for outdoor installation
  • Dimension: 215 x 225 x 52mm
  • Input DC12V; idle -100mA, active reading - 500mA
  • Frequency: 919 - 923 Mhz to comply Malaysia SIRIM MCMC regulation
  • Pass through seamlessly without stopping car
  • Dual encryption for double safety against card cloning
  • Ignore TnG RFID to eliminate interference problem

Add to Enquiry List
Add to wishlist

Long Range Reader

MAG UHF Long Range Reader

Code : GS-VHC-LRR002

  • UHF reader
  • Data output wiegand 26 / 34
  • Reading range: 2 to 6 meter depend heavily on solar film at car (outdoor)
  • IP66, waterproof and weather proof for outdoor installation
  • Dimension: 215 x 225 x 52mm
  • Input DC12V; idle -100mA, active reading - 500mA
  • Frequency: 919 - 923 Mhz to comply Malaysia SIRIM MCMC regulation
  • Pass through seamlessly without stopping car
  • One card solution with EM-UHF and Mifare-UHF hybrid
  • Able to differentiate TnG RFID to minimize interference problem

Add to Enquiry List
Add to wishlist

Long Range Reader

MAG Mid Range Reader

Code : GS-VHC-LRR003

  • Interfaces wiegand 26,34 (selectable output option)
  • Reading range: 70 cm to 120 cm depending on interference at site and types of solar film installed on car.
  • RFID cards accepted. 125KHz, 64 bits, Manchester encoding.
  • Dimension: 420 (w) x 320 (L) x 45(D) mm
  • Input DC19.2V; idle -300mA, active reading - 330mA
  • Bright blue LED and buzzer indicators
  • Stop car to flash card from side windows
  • One card solution with commonly used EM based door access
  • Affordable and still no need wind down windows

Add to Enquiry List

Sliding Autogate

Add to wishlist

Sliding Autogate

MAG AC Sliding Motor

Code : GS-VHC-SLD001

  • Max gate weight : 600 kg
  • Standard usage fiber pinion gear
  • Motor type : AC
  • Backup battery : N/A
  • Stronger and less maintenance
  • Silent operation < 60dB
  • Opening speed 10 meter / min
  • Gearbox is greased type
  • Coded remote control allow 30 to 50 meter transmission
  • Support photo beam input for extra safety feature
  • Limit switch using heavy duty micro switch for reliable and accurate positioning.

Add to Enquiry List
Add to wishlist

Sliding Autogate

MAG AC Sliding Heavy Duty Motor

Code : GS-VHC-SLD002

  • Max gate weight : 1000 kg
  • Heavy duty usage metal pinion gear
  • Motor type : AC
  • Backup battery : N/A
  • Stronger and less maintenance
  • Silent operation < 60dB
  • Opening speed 10 meter / min
  • Gearbox is greased type
  • Coded remote control allow 30 to 50 meter transmission
  • Support photo beam input for extra safety feature
  • Limit switch using heavy duty micro switch for reliable and accurate positioning.

Add to Enquiry List
Add to wishlist

Sliding Autogate

MAG DC Sliding Motor

Code : GS-VHC-SLD003

  • Max gate weight: 600 kg
  • Standard usage fiber pinion gear
  • Motor type : DC
  • Backup battery : Yes
  • Faster with dual speed cushioning
  • Silent operation < 60dB
  • Opening speed 15.5 meter / min
  • Gearbox is greased type
  • Coded remote control allow 30 to 50 meter transmission
  • Support photo beam input for extra safety feature
  • Limit switch using heavy duty micro switch for reliable and accurate positioning.

Add to Enquiry List
Add to wishlist

Sliding Autogate

AC Residential Sliding Motor (Italy Motor)

Code : GS-VHC-SLD004

  • Max gate weight : 900 kg
  • Extra durable metal pinion gear
  • Motor type: AC, enhanced
  • Backup battery : N/A
  • Big gate for premium house
  • Opening speed 10 meter / min

Add to Enquiry List
Add to wishlist

Sliding Autogate

AC Industrial Sliding Motor (Italy Motor)

Code : GS-VHC-SLD005

  • Max gate weight : 1500 kg
  • Industrial grade metal pinion gear
  • Motor type: 230V AC powered, high performance
  • Backup battery : N/A
  • Heavy gate for industrial use
  • Silent
  • Greased soaked motor
  • Integrated limit switch
  • A simple unlocking system by key
  • Mechanical clutch with Anti-crushing safety
  • Superior performance fine tune to yield motor maximum performance
  • Coded remote control allow 30 to 50-meter transmission
  • Electromechanical break for more immediate stop

Add to Enquiry List
Add to wishlist

Sliding Autogate

AC Industrial 3-Phase High Power Sliding Motor (Italy Motor)

Code : GS-VHC-SLD006

  • Max gate weight : 2000 kg
  • Industrial grade metal pinion gear
  • Motor type: AC, 3-phase high power
  • Backup battery : N/A
  • Very heavy gate for industrial use
  • Silent
  • Greased soaked motor
  • Integrated limit switch
  • A simple unlocking system by key
  • Mechanical clutch with Anti-crushing safety
  • Superior performance fine tune to yield motor maximum performance
  • Coded remote control allow 30 to 50-meter transmission
  • Electromechanical break for more immediate stop

Add to Enquiry List

Swing Autogate

Add to wishlist

Swing Autogate

MAG Standard Wing Arm Swing Motor

Code : GS-VHC-SWI001

  • Electro-mechanical screw driver piston type
  • Max gate weight: 250kg per leaf
  • Manual open: Dismount motor’s front joint from gate
  • Grease motor for lower maintenance
  • Max security self lock at every angle
  • Motor visible at gate
  • Piston displace 32cm
  • Piston speed 2.9cm / sec
  • Coded remote control allow 30 to 50 meter transmission
  • With backup battery

Add to Enquiry List
Add to wishlist

Swing Autogate

MAG High Performance Wing Arm Swing Motor

Code : GS-VHC-SWI002

  • Electro-mechanical screw driver piston type
  • Max gate weight: 250kg per leaf
  • Extra quiet and robust mechanism
  • Manual open: Dismount motor’s front joint from gate
  • Grease motor for lower maintenance
  • Max security self lock at every angle
  • Motor visible at gate
  • Piston displace 32cm
  • Piston speed 2.9cm / sec
  • Coded remote control allow 30 to 50 meter transmission
  • With backup battery

Add to Enquiry List
Add to wishlist

Swing Autogate

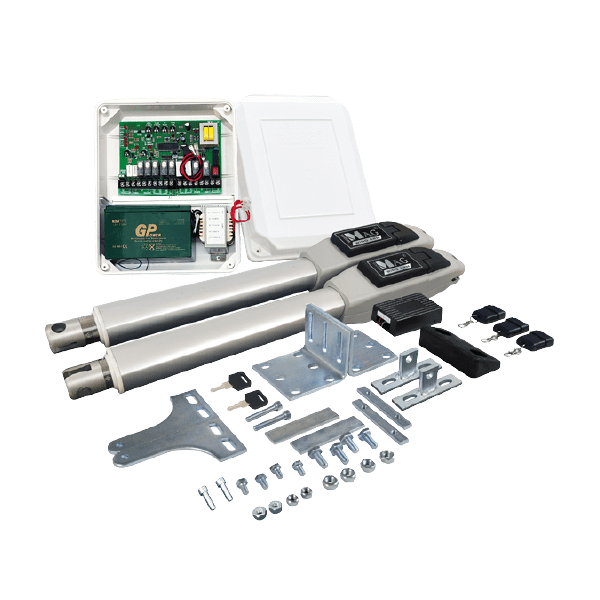

MAG Premium Wing Arm Swing Motor

Code : GS-VHC-SWI003

  • Electro-mechanical screw driver piston type
  • Max gate weight: 250kg per leaf
  • Premium finishing to be stylish
  • Manual open: Release key to unlock at motor gear box
  • Grease motor for lower maintenance
  • Max security self lock at every angle
  • Motor visible at gate
  • Piston displace 30cm
  • Piston speed 3.3cm / sec
  • Coded remote control allow 30 to 50 meter transmission
  • With backup battery

Add to Enquiry List
Add to wishlist

Swing Autogate

MAG Underground Swing Motor

Code : GS-VHC-SWI004

  • Max gate weight: 200kg per leaf
  • Patented 8 spring clutch
  • Manual open: Release key unlock solenoid lock at floor
  • Oil bath motor to last longer
  • Solenoid lock at the center of gate
  • Motor hide seamlessly underground
  • Fast and silent – 90° opening at 8 to 10 sec
  • Coded remote control allow 30 to 50 meter transmission

Add to Enquiry List
Add to wishlist

Swing Autogate

Wing Arm Swing Motor (Italy Motor)

Code : GS-VHC-SWI005

  • Max gate weight: 600kg per leaf
  • Italy premium heavy duty motor
  • Manual open: Release key unlock motor
  • Grease motor for lower maintenance
  • Max security self lock at every angle

Add to Enquiry List
