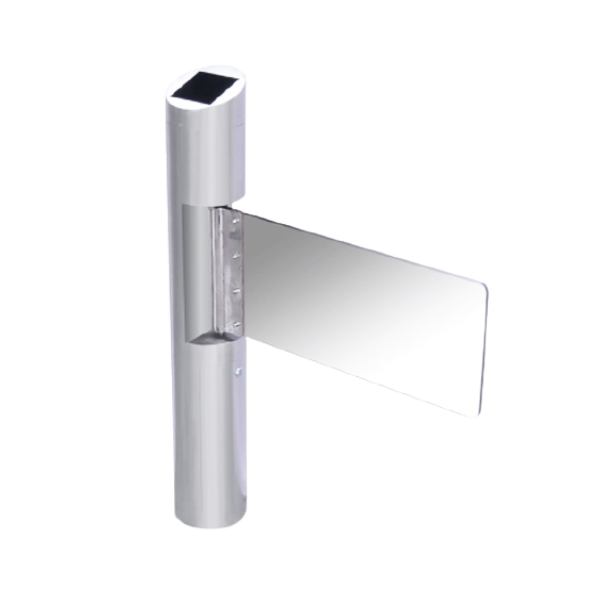

MAG Tubular Swing Barrier
Code : GS-PED-SWI002
- Cabinet dimension: 168mm(diameter) x 1050(H)
- Default gate length: 450mm
- Cabinet material: 304 stainless steel
- Power supply: AC220 10%V / 50 10%Hz
- Motor voltage DC 24V (brushless motor)
- Access device input voltage: dry contact
- Optimal flow rate: 20-25 people per minute
- Gate swing angle: 90° per side
- Initialization time: 14 sec
- IP 52 rating
- Power rating 30W
- Compact mini size; Fully auto brushless motorized; Support card access system
Related products
Swing Barrier
Code : GS-PED-SWI001
- Body material: acrylic glass, stainless steel
- Gate door material: 12mm acrylic
- Door width (single panel): 26.5cm standard lane; 45cm handicapped lane
- Door opening / closing speed: programmable 0.4-1.5 sec
- Optimal flow rate: 20-25 people per minute
- Power supply: AC220/110V 10%, 50/60Hz
- Motor: DC brushless motor, 140W/24V
- Input connection: dry contact pulse > 500ms
- Working environment: indoor only (-15 – 60 °C, RH 90%)
- Passage width 580mm
- Cabinet dimension: 1400(L) x 1020(W) x 980(H) mm
- IP52 rating
- Power rating:10W (standby) / 40W (operation)
- Minimum maintenance; Alarm notification; Multiple access memory; Emergency evacuation
Swing Barrier
Code : GS-PED-SWI003
- Stainless steel railing add on for Tubular Swing Barrier
