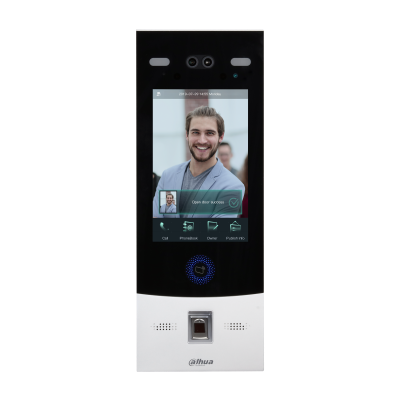

Dahua Digital Face Recognition Outdoor Station
Code : DA-DH-VI015
- Suitable used at apartment lobby station
- SIP2.0
- 2MP CMOS Camera
- Anodized aluminum alloy middle frame
- 8″ IPS Touch Screen; resolution: 800(H) x 1280(V)
- Face, fingerprint, password, and Mifare card reader
- Face verification accuracy>99%; face comparison time<=0.2s per person; false recognition rate<0.1%
- TCP/IP 10/100Mbps, RS-485, Wiegand, Alarm 2/2
- IK07; IP66 (Silica gel is needed)
- Dimensions: 145mm?389mm?43mm
- DC12V/2A
- Surface mount and flush mount
