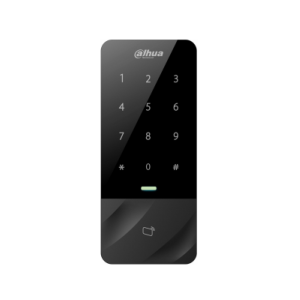

Code : DA-DH-CA001
- Touch keypad
- Supports 30K cards & 150K records
- Support multiple cards (default IC card) (“-D” means ID EM card)
- Support card, password and combination
- TCP/IP to PC
- Wiegand or RS-485 interface to reader
- Door time out alarm, intrusion alarm, duress alarm and tamper alarm
- Anti-passback, multi-card open
- Water-proof design
- Support 128 efficient time and holiday schedules
- Watch dog function ensure device free from halting
- IP66
- Includes Basic Time Attendance reports via Smart PSS-AC
- Dimension: 62 x 23 x 142mm

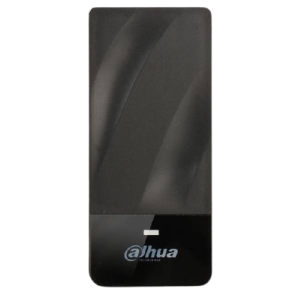

Code : DA-DH-CA002
- Wiegand 34/26 (default 34); RS-485 protocol
- 13.56MHz (Mifare)
- 125KHz(EM-ID)
- Waterproof design
- Red, blue and green indicator LEDs; built-in buzzer
- Surface mounted installation
- IP67 Outdoor use
- 9-15VDC/100mA
- Dimension: 96 x 43 x 17mm

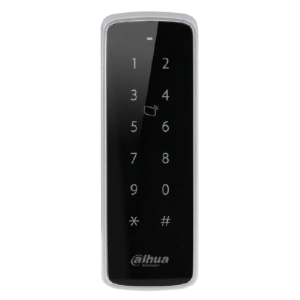

Code : DA-DH-CA003
- RS485, Wiegand 34/26 protocol (Default 34)
- 13.56MHz (Mifare)
- 125KHz (EM-ID)
- Red and Blue LEDs
- Watch dog function ensure device free from halting
- Waterproof IP65 outdoor use
- Surface/flush mounted installation
- Dimension: 135 x 48 x 16mm
