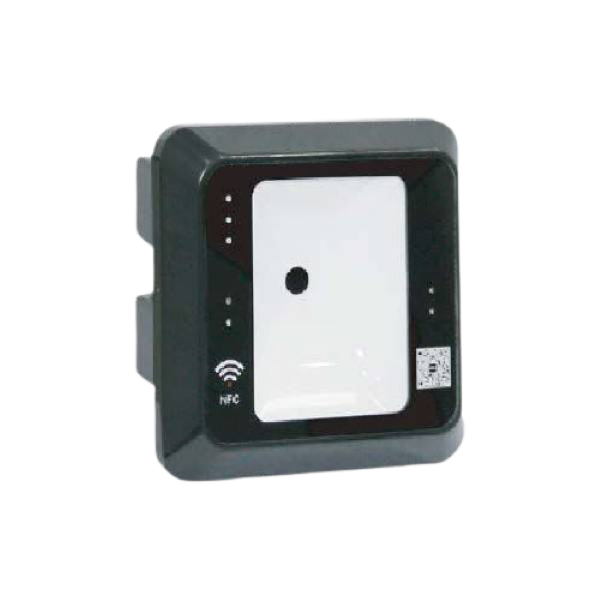

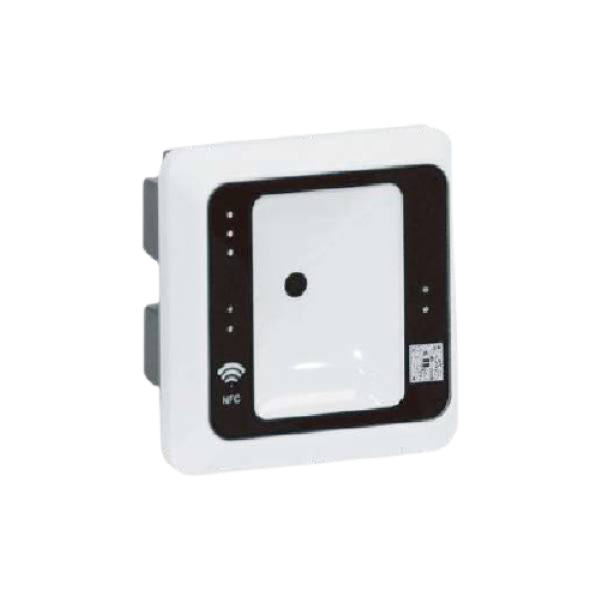

ZKTeco Intelligent Access Control Mifare card & QR Code Reader
Code : DA-ZK-CA005
- High speed scanning, recognition rate and compatibility
- QR Code, Data Matrix, PDF417, GS1 Databar, Code 128/EAN128, UPC/EAN, Codabar, Code 39/93 etc.
- Mifare Ultralight / S50 / S70 / DESFire EV1 NTag/
- QR500-B ERP Code: X02101088
- QR500-W ERP Code: X02101089
- Signal type: W26 / W34 / W66, RS485, USB
- Reading Distance: QR ≥ 5CM, Mifare Card ≥ 4CM (13.56Mhz)
