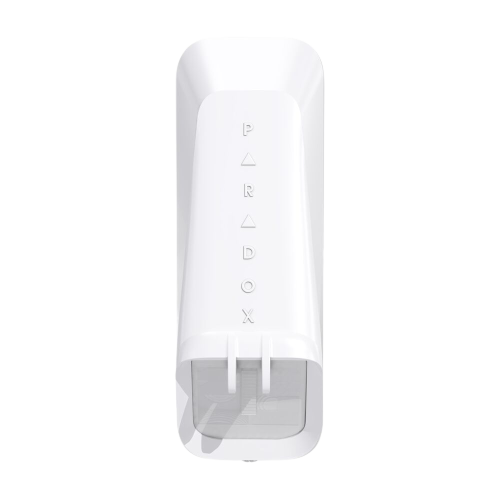

Paradox Outdoor/Indoor Window and Sliding Door Dual Detector
Code : BA-PRDX-WACC016
- Outdoor / indoor protection solution for windows and sliding doors
- Pet Immune detection
- Anti-masking – Active IR detection for sprayed liquids and blocking items up to 30 cm (11.8 in.)
- Dual detectors controlled by Full Authority Digital Electronics Control (FADEC)
- Optical pet discrimination geometry to support Super Pet Immunity
- Dual tamper detection
- Creep zone detection
- Wired, solid state relay output
Related products
Paradox Sensors & Accessories
Paradox Two Dual Element Digital PIR Wired Motion Detector with Pet Immunity
Code : BA-PRDX-WACC011
- Extremely reliable and false-alarm free
- Dual optics (2 dual opposed element sensors)
- Provides superior pet immunity
- Immune to pets weighing up to 40kg
- 11m (35ft) X 11m (35ft)
- 90° viewing angle
- Anti-tamper switch
- Can be used with SB469 Swivel-Mount Bracket
Paradox Sensors & Accessories
Paradox Digital PIR Wired Motion Detector with Pet Tolerance
Code : BA-PRDX-WACC010
- Dual element PIR sensor managed by Full Authority Digital Electronics Control (FADEC)
- Auto-Pulse Signal Processing (APSP) and Dual Edge Processing with settings for normal or high interference environments
- Auto temperature compensation
- Anti-tamper switch
- Can be used with SB100 Wall and Ceiling Bracket
- Digital sensitivity trimmer adjustment with 5 range levels
- 10m (33ft) X 10m (33ft)
- 102° viewing angle
Paradox Sensors & Accessories
Code : BA-PRDX-WACC015
- Conventional solid-state relay operation
- Full audio and infrasonic spectrum analysis
- 7 frequency digital filters, digital amplifier gain & frequency fluctuation assessment
- Impact & shock wave analysis; High-immunity to RFI and EMI signals
- Adjustable sensitivity setting: covers 4.5m (15ft) to 9m (30ft)
Paradox Sensors & Accessories
Code : BA-PRDX-WACC007
- Reports events to the Paradox IPR512 GPRS/ IP Monitoring Receiver and/or IPRS-7 PC Receiver Software
- Instant notification of panel supervision loss
- Easily Arm/Disarm the system via SMS
- Reports alarms via text messages to up to 16 cellular phone numbers
- Simple installation with 4-wire serial connection
- Supports 2 cellular provider SIM Cards for provider redundancy
- Tamper switch support
- Messages are secured with 256-bit (AES) encryption
- Optional rod antenna can be installed up to 18m (60ft) from the module using optional antenna cable extensions depending on the local signal strength
Paradox Sensors & Accessories
Paradox Pro Plus Analog Single-Optic PIR Wired Motion Detector
Code : BA-PRDX-WACC009
- Dual element PIR sensor
- Anti-tamper switch
- Auto-Pulse Signal Processing (APSP)
- Can be used with SB469 Swivel-Mount Bracket
- Extremely high EMI and RFI rejection
- PCB uses only surface mount components
- 11m (35ft) X 11m (35ft)
- 110° viewing angle
Paradox Sensors & Accessories
Code : BA-PRDX-WACC013
- Ideal for entry/exit protection and exit access requests
- Dual Element PIR Sensor
- Anti-tamper switch
- Adjustable lens position (0° or 10°)
- Adjustable alarm signal duration
- Detects body-sized objects for security applications: 6m x 4.5m (20ft x 15ft)
- Detects hand-sized objects for card access applications: 2m x 1.5m (7ft x 5ft)
Paradox Sensors & Accessories
Code : BA-PRDX-WACC008
- Provides the ability to automatically print live or stored events
- Provides an interface between an EVO control panel and a third party peripheral system
- Supports ASCII/ C-Bus protocols
- 16 virtual inputs to trigger an action in the peripheral system based on an event received from the peripheral system, using ACSII or C-Bus protocol
- 30 virtual PGMs to trigger an action in the peripheral system based on an event received from the EVO control panel, using ACSII or C-Bus protocol
- USB port for PC connections
- Parallel and serial port for printer connections
- 2048 event buffer
- Automatically / manually prints reports of zone / system events via printer or PC
- Available in multiple languages
- In-field firmware upgradable via a CV4USB
Paradox Sensors & Accessories
Paradox 8-port PGM Expansion Module with Enclose & Cover Lock
Code : BA-PRDX-WACC003
- Expansion of 8 programmable outputs
- PGM control via Insite GOLD application
- PGM control with manual on-box switches (PGM82)
- Can follow system events
- Display for each PGM, Data and Power
- Box cover lock mechanism (PGM82)
- Supports SP, MG, EVO and Swan
- Connects to control panel via 4-wire on keypad bus
- Firmware upgradeable
