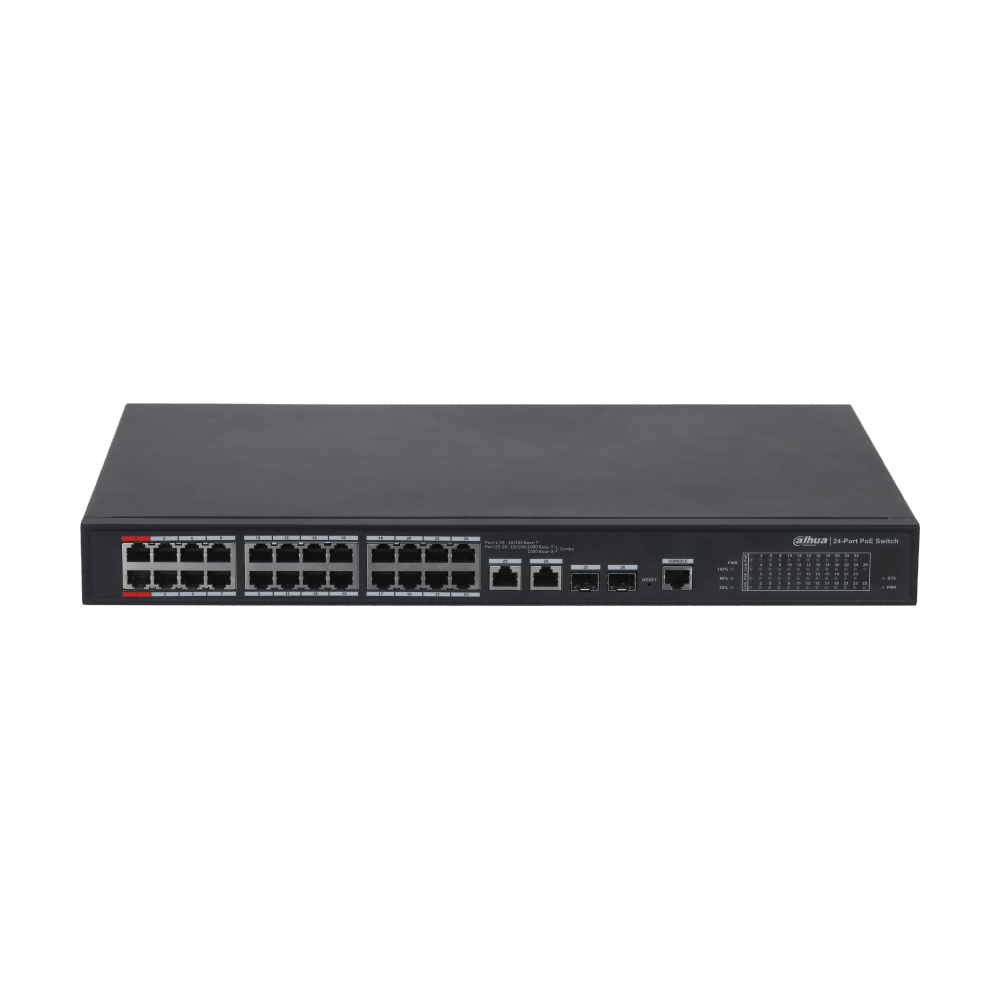

Dahua 24FE PoE + 2*Combo Managed Switch (Max 240W PoE output)

Code : NS-DH-MP001

• Two-layer managed PoE switch
• MAC auto study and aging, MAC address list capacity is 8K
• Support private fast ring network, recovery time <=50ms
• Max 30W per port (IEEE 802.3af/at) and 60W for port 4 (Hi-PoE)
• Industrial wide temperature design
• PoE Management
• Supports VLAN, Management, Spanning Tree
• Lightning Protection: Common Mode 4KV, Differential Mode 2KV

Code : NS-DH-MP005

• Layer 2 management PoE switch
• Max 30W per port (IEEE 802.3af/at) and 60W for port 1/2 (Hi-PoE)
• 'Orange port' support Hi-PoE, can be used with the PoE extender (PFT1300)
• Supports 250 meters long distance PoE transmission, VLAN, Spanning Tree, Management
• PoE management, PoE Setting/Event Statistics/Green PoE
• Search and upgrade via ConfigTool
• Support Web management
• Lightning Protection: Common Mode 4KV, Differential Mode 2KV

Code : NS-DH-MP006

• Ports 1-8 supports long distance PoE transmission up to 800m with ePoE
• Layer-two web managed ePoE switch
• Port 1-8 support three self-adaptive transmission modes which are IEEE, E100 and E10
• Port 1-8 support both twisted-pair transmission and coaxial cable transmission
• Support web management: port management, 802.1Q VLAN, STP/RSTP, LACP, 802.1X, QoS
• Support PoE management, Green PoE, Legacy Support
• Max 30W per port (IEEE 802.3af/at) and 60W for port 1/2 (Hi-PoE)
