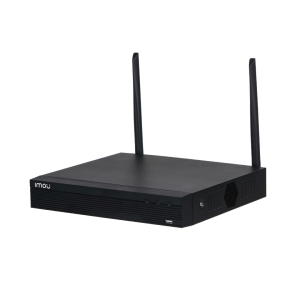

IMOU Series
Code : NVR-IMO-4/8CH001
- IP Camera Input: 4/8 Channels
- Wired Max. Input: 40Mbps
- Wireless Max .Input: 16Mbps
- Operation Display: WEB/GUI/Imou APP
- Video In: 4/8 Channels
- Video Out: 1 HDMI/1 VGA
- ONVIF Profiles T/S/G, CGI, SDK
- IMOU App: iOS, Android
- Wi-Fi: IEEE802.11b/g/n, 100m Open Field; Internal Dual-antenna, 2×2 MIMO
- Resolution: 1080P/720P
- Max Decoding: 1ch@6MP/2ch@4MP/4ch@1080P/8ch@720P
- Compression: H.265+/H265/H.264+/H.264
- Audio Compression: G.711A/G.711U/PCM/G726
- Recorder Mode: Manual/Alarm/Motion detection/Schedule
- Backup Mode: USB Device
- Playback: 1/4
- Storage: Up to 8TB HDD/Cloud Storage
- Multi-screen Display: 4ch: 1/4; 8ch: 1/4/8/9
- Power Supply: DC12V 1.5A
- Power Consumption: ≤10W(without HDD)
- Operation Conditions: -10℃～+45℃(+14℉~+104℉); 10℅～90℅RH
- Dimensions(W×L×H): 260.3mm×247.3mm×44.7mm (10.25" ×9.74" ×1.76" )
- Net Weight: 0.824kg(1.82lb)
- Certification: CE/FCC
- 2 x USB Ports
- 1 x SATA Port
- 1 x Network Port
- 1 x RCA In
- 1 x RCA Out
- 1 x HDMI Port
- 1 x VGA Port
- 1 x Power Port
