Unmanaged Gigabit POE Switches

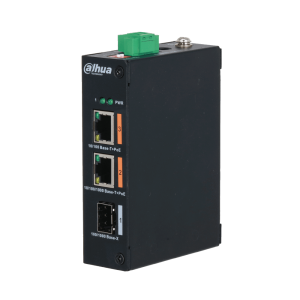

Dahua 1*FE PoE, 1*GE PoE, 1*SFP Unmanaged Switch (Max 60W PoE output)
Code : NS-DH-UMPGT003
- Layer-two Unmanaged PoE Switch
- MAC auto study and aging, MAC address list capacity is 8K
- Conforms to IEEE802.3af and IEEE802.3at power supply standard. Port 2 and 3 support Hi-PoE 60W power supply
- Adopts metal structure
- High protection grade, supports common mode 4KV, differential mode 2KV
- Supports DC 48V-DC 57V power supply and dual power backup
- Supports -30°C~65°C operating temperature
Unmanaged Gigabit POE Switches

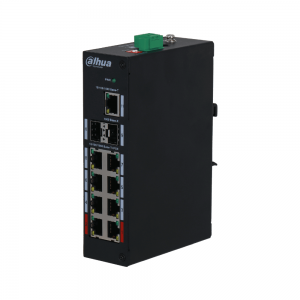

Dahua 11-port Gigabit with 8-port PoE L2 Unmanaged Hardened Switch
Code : NS-DH-UMPGT005
- 8*GE PoE, 1*GE, 2*SFP (Max 120W PoE output)
- Layer 2 Hardened PoE switch
- MAC auto study and aging, MAC address list capacity is 4K
- Support IEEE802.3af, IEEE802.3at and Hi-PoE standard
- Adopts metal structure
- Industrial wide working temperature design: -30°C~+65°C
- High protection grade, supports common mode 4KV, differential mode 2KV
- Supports DC48V - DC57V power supply & dual power backup
Unmanaged Gigabit POE Switches

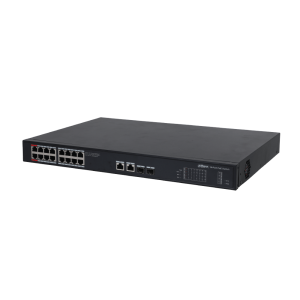

Dahua 16GE PoE + 2GE + 2*SFP Unmanaged Switch (Max 240W PoE output)
Code : NS-DH-UMPGT006
- Max 30W per port (IEEE 802.3af/at) and 90W for port 1/2 (802.3bt)
- 52Gbps Switching capacity
- 29.76Mpps packet forwarding rate
- Intelligent PoE
- All-giga Ports
- Smooth Transmission
- Wide Working Temperature: –10 to 55°C (14°F to 131°F)
Unmanaged Gigabit POE Switches
Code : NS-DH-UMPGT001
- Layer 2 commercial switch
- Max 30W per port (IEEE 802.3af/at) and 60W for port 1 (Hi-PoE)
- Lightning Protection: Common Mode 2KV, Differential Mode 1KV
- MAC auto study and aging, MAC table size is 2K
- MDI/MDIX self-adaption
- Adopts metal enclosure
- Wall-mount installation
- Anti-theft lock hole
Unmanaged Gigabit POE Switches

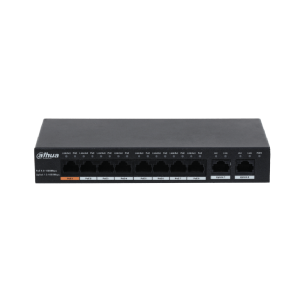

Code : NS-DH-UMPGT002
- Support eight 10/100/1000Mbps PoE Ethernet ports, and two 10/100/1000Mbps Ethernet ports
- Operating Temperature: –10°C to + 55°C
- PoE Power Requirement: 48V DC–57V DC Input
- Max 30W per port (IEEE 802.3af/at) and 60W for port 1 (Hi-PoE)
- Lightning Protection: Common Mode 6KV, Differential Mode 4KV
Unmanaged Gigabit POE Switches

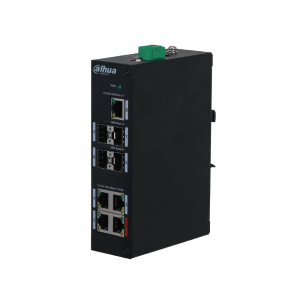

Dahua 9-port Gigabit with 4-port PoE L2 Unmanaged Hardened Switch
Code : NS-DH-UMPGT004
- 4*GE PoE, 1*GE, 4*SFP (Max 96W PoE output)
- Layer 2 Hardened Ethernet switch
- MAC auto study and aging, MAC address list capacity is 4K
- Support IEEE802.3af, IEEE802.3at and Hi-PoE standard
- Adopts metal structure
- Industrial wide working temperature design: -30°C~+65°C
- High protection grade, supports common mode 4KV, differential mode 2KV
- Supports DC48V - DC57V power supply & dual power backup
