Network Transmission

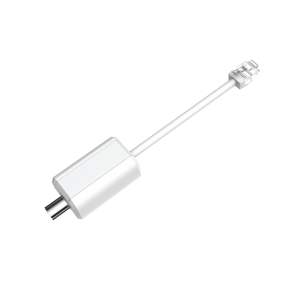

Code : NS-DH-NT004
- ONLY for ePoE use
- Supports IEEE802.3, IEEE802.3u standards
- Port: 1*RJ45 10/100Mbps, 1*BNC
- Comes in a pair
- Supports RG59 coaxial cable: 400m/100Mbps,1000m/10Mbps
- Supports MDI/MDIX self-adaption
- Supports long range power supply transmission via coaxial cable
Network Transmission

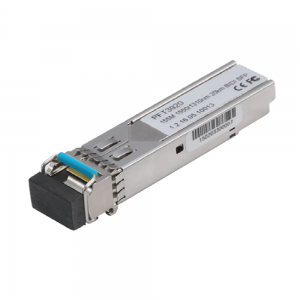

Dahua Gigabit SFP (Small Form Pluggable) Fiber Module Transceiver
Code : NS-DH-NT007
- Wide-range temperature application: -40ºC ~85ºC
- Dual fiber multimode LC connectors
- 850nm, 500m distance, 1.25G
- Suitable for DAHUA, BELCO, ZyXEL and many other brands switches
- Not compatible with Cisco, HP, 3Com, Broadcom and Alcatel switches
Network Transmission

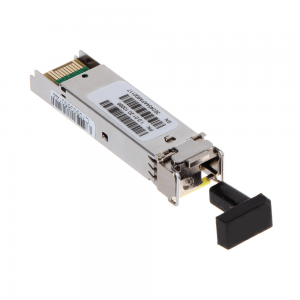

Dahua Gigabit SFP (Small Form Pluggable) Singlemode Fiber Module Transceiver
Code : NS-DH-NT008
- 1310nm/1550nm or 1550nm/1310nm (Must use in pairs)
- 1.25G, 20km, single fiber LC connector
- Bi-directional
- Not compatible with Cisco, HP, 3Com, Broadcom and Alcatel switches
Network Transmission

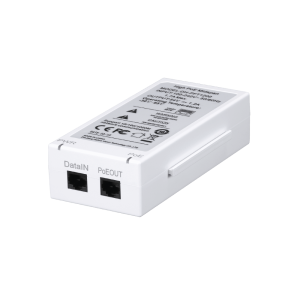

Code : NS-DH-NT002
- Support PoE for Hi-PoE 60W high power consumption speed dome
- Indicator status: power (normal power on), PoE (normal power supply)
- 1 x GE input port, 1 x GE Hi-PoE Output port
- Cooperate with PoE extender (PFT1300), able to cascade level 2 PoE Extender, connect to 3 IPC (power consumption <=8W), max transmission distance 300m
- Installation mode: wall mount
Network Transmission

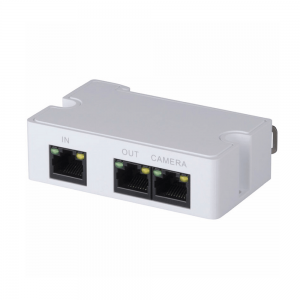

Code : NS-DH-NT003
- only compatible with Dahua Hi-PoE output Ports
- Support passive PoE cascade power supply and Ethernet data exchange
- Support IEEE 802.3af/at standard power supply IP Camera
- Cooperate with High PoE midspan (PFT1200), able to cascade level 2 PoE Extender, connect to 3 IPC (power consumption <=8W), max transmission distance 300m
- 1*RJ45 10/100M PoE power supply input; 1*RJ45 10/100M supply power for IP Cam; 1*RJ45 10/100M supply power for the next extender
- Installation mode: junction box internal mounting, DIN rail mounting
Network Transmission

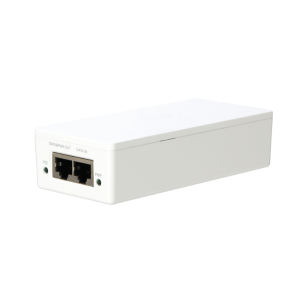

Code : NS-DH-NT001
- Supports IEEE802.3af, IEEE802.3at standard
- Wide temperature design: -10°C~55°C
- 10/100/1000 Base-T (Gigabit supported)
- Power output up to 30W
Network Transmission

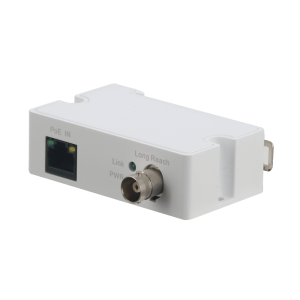

Dahua Single-Port Long Reach Ethernet over Coax Extender (Receiver)
Code : NS-DH-NT006
- Supports IEEE802.3, IEEE802.3u standards
- Supports IEEE802.3af and IEEE802.3at power supply standards
- Port: 1*RJ45 10/100Mbps, 1*BNC
- Supports RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps
- Supports MDI/MDIX self-adaption
- Supports long range power supply transmission via coaxial cable
- Receiver must be powered from PoE switch / injector
Network Transmission

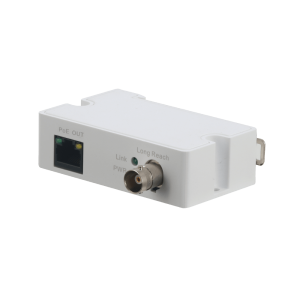

Dahua Single-Port Long Reach Ethernet over Coax Extender (Transmitter)
Code : NS-DH-NT005
- Supports IEEE802.3, IEEE802.3u standards
- Supports IEEE802.3af and IEEE802.3at power supply standards
- Port: 1*RJ45 10/100Mbps, 1*BNC
- Supports RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps
- Supports MDI/MDIX self-adaption
- Supports long range power supply transmission via coaxial cable
- Transmitter supplies PoE power to IP device
