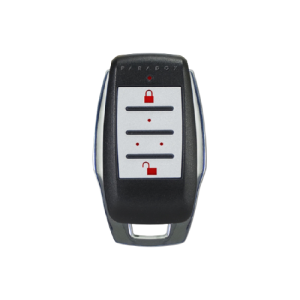

Code : BA-PRDX-XWACC003

• RF Frequency: 433 or 868 MHz
• Battery Type: 1x 3V Lithium Battery (CR2032)
• Wireless Range for Typical Residential Environment: 30m (100ft) to 45m (150ft)
• Humidity: 5 to 90%
• Operating Temperature: -10 to 55c (14 to 131F)
• Dimensions/Weight: 6.6 x 3.9 x 1.1cm (2.6 x 1.5 x 0.4in.)/ 35g (1.2 oz)
• Water resistant, slim & ergonomic design
• Perform up to 5 different actions

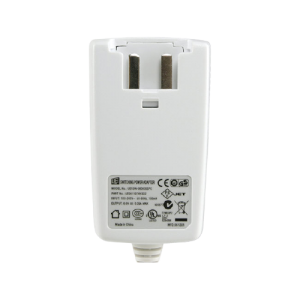

Code : BA-PRDX-XWACC001

• For use with K32RF
• Provides 6 Vdc at 350 mA maximum
• Includes 1 of 5 different power outlets
• Dimensions: 4 x 8 x 7cm (1.6 x 3.1 x 2.8in.)

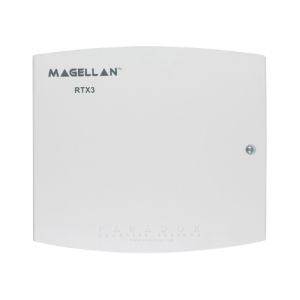

Code : BA-PRDX-XWACC014

• c/w Transformer, Battery & Plasbox
• Extends the range of wireless communications by another 75m
• Built-in Transceiver
• Supports all MAGELLAN transmitters (including two-way)
• Selects which zone, PGM and/or keypad signals are repeated
• Signal strength display
• RF jamming supervision
• Fully supervised by panel or console
• 1 programmable 5A relay output
• Universal input (N.O./N.C.)
• In-field firmware upgradeable via 307USB

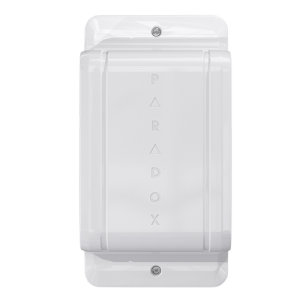

Code : BA-PRDX-XWACC013

• Dual side anti-masking detection – Active IR detection, fast 20 seconds detection designed for outdoor detecting sprayed liquids and blocking items up to 25 cm (10 in.)
• Pet Immunity capability, up to 40 kg (90 lb)
• 4 dual element sensors arrangement
• High efficiency long focal point (1.77 in.) LoDiff lens
• Combination optics – mirror and Fresnel Lens for optimal sharp detection
• Wireless frequency selection supports two internally selectable frequencies
• Single or Dual operation modes
• Optical and digital range adjustments
• Dual LED and buzzer indicators
• Wall-mount, with built-in level tool

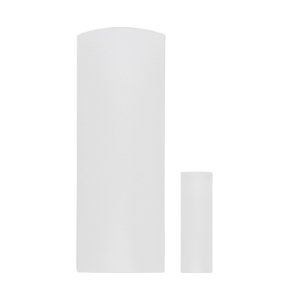

Code : BA-PRDX-XWACC008

• 2-zone capabilities where each zone is independent and has it own serial number
• Zone 1: One of two high-sensitivity reed switches on board (magnet included)
• Zone 2: Universal input (N.O./N.C.)
• Low battery and signal transmission LED
• Anti-tamper switch
• Dimensions: 12.4cm (H) x 4.5cm (W) x 3.3cm (D)

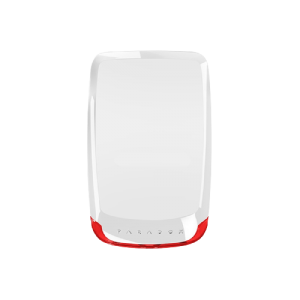

Code : BA-PRDX-XWACC015

• Built-in transceiver
• Wireless suren (100 dBA) with integrated strobe light
• Fast alarm response time (within 4 seconds)
• 2.5 hour alarm display (strobe flashes every 4 seconds after bell cutoff)
• Siren presence supervised by control panel
• Dual tamper mechanism (wall/cover)
• Siren test mode
• Signal strength / RF transmission and status LEDs
• Strobe lens available in red / blue
• In-field firmware upgradeable via 307USB
• Wireless range: 35m (RF Freq 433Mhz)
• Dimensions: 13.4cm x 21.17cm x 5.1cm
